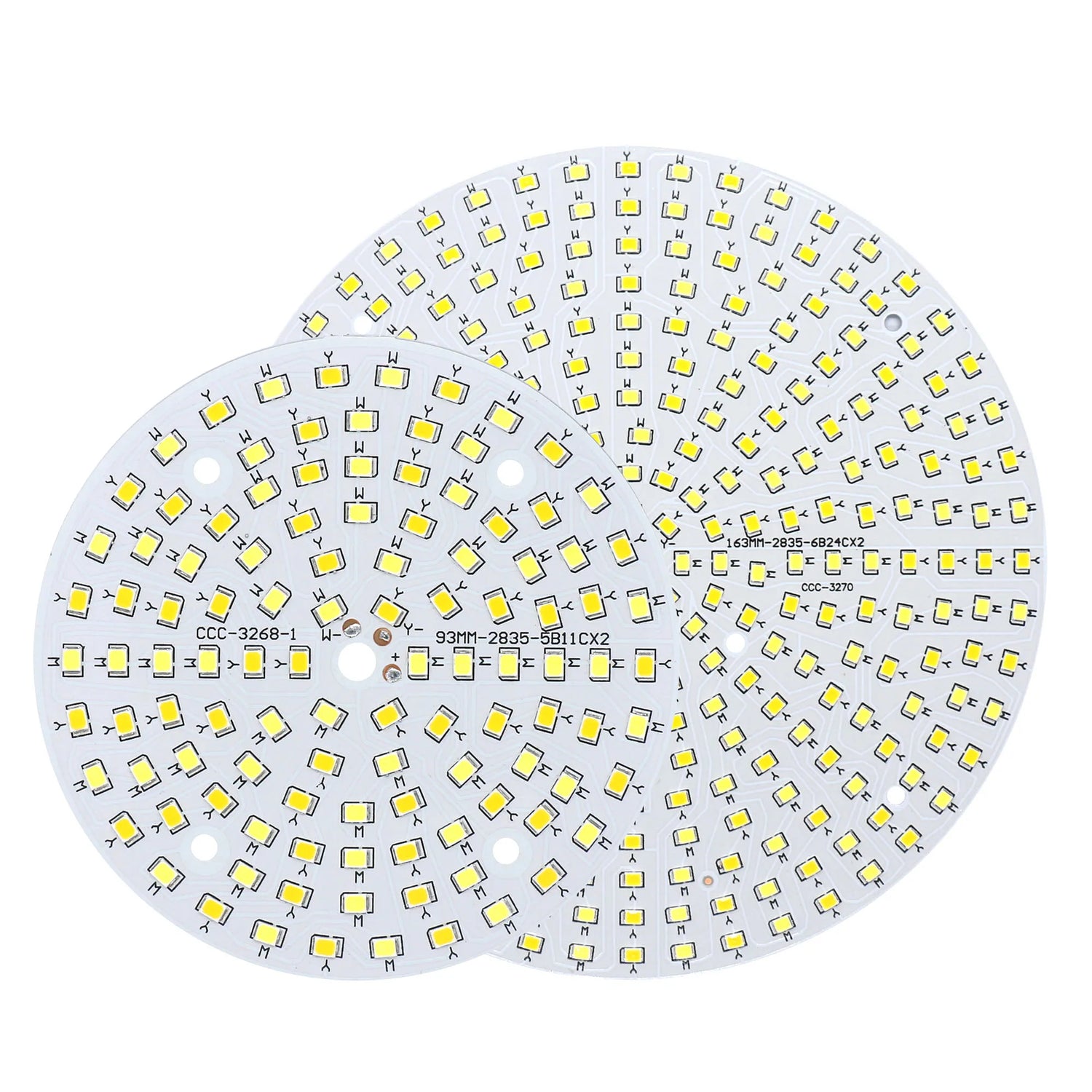

SMD2835 Two-color chip 10W 18W 24W 36W LED COB Lamp Beads 250mA Floodlight For Spotlight Panel light Convert color Round shape
SMD2835 Two-color chip 10W 18W 24W 36W LED COB Lamp Beads 250mA Floodlight For Spotlight Panel light Convert color Round shape - 24W / Two color is backordered and will ship as soon as it is back in stock.
Color Chart & IP Ratings
SMD2835 Two-color chip 10W 18W 24W 36W LED COB Lamp Beads 250mA Flo...
Description
Description
SPECIFICATIONS
10W Voltage: DC30-32V
18W Voltage: DC54-56V
24W Voltage: DC72-76V
36W Voltage: DC108-115V
Certification: CCC
Current: 250mA
Feature 1: The quality of the lamp beads is good, and the light is flexible and not harsh
Feature 2: High reliability, long life excellentmoistureproof and cauterizatio
Hign-concerned Chemical: None
Item Type: BALL
Power: 10W/18W/24W/36W
Shape: Circular
color: Two-color= cold white and warm white

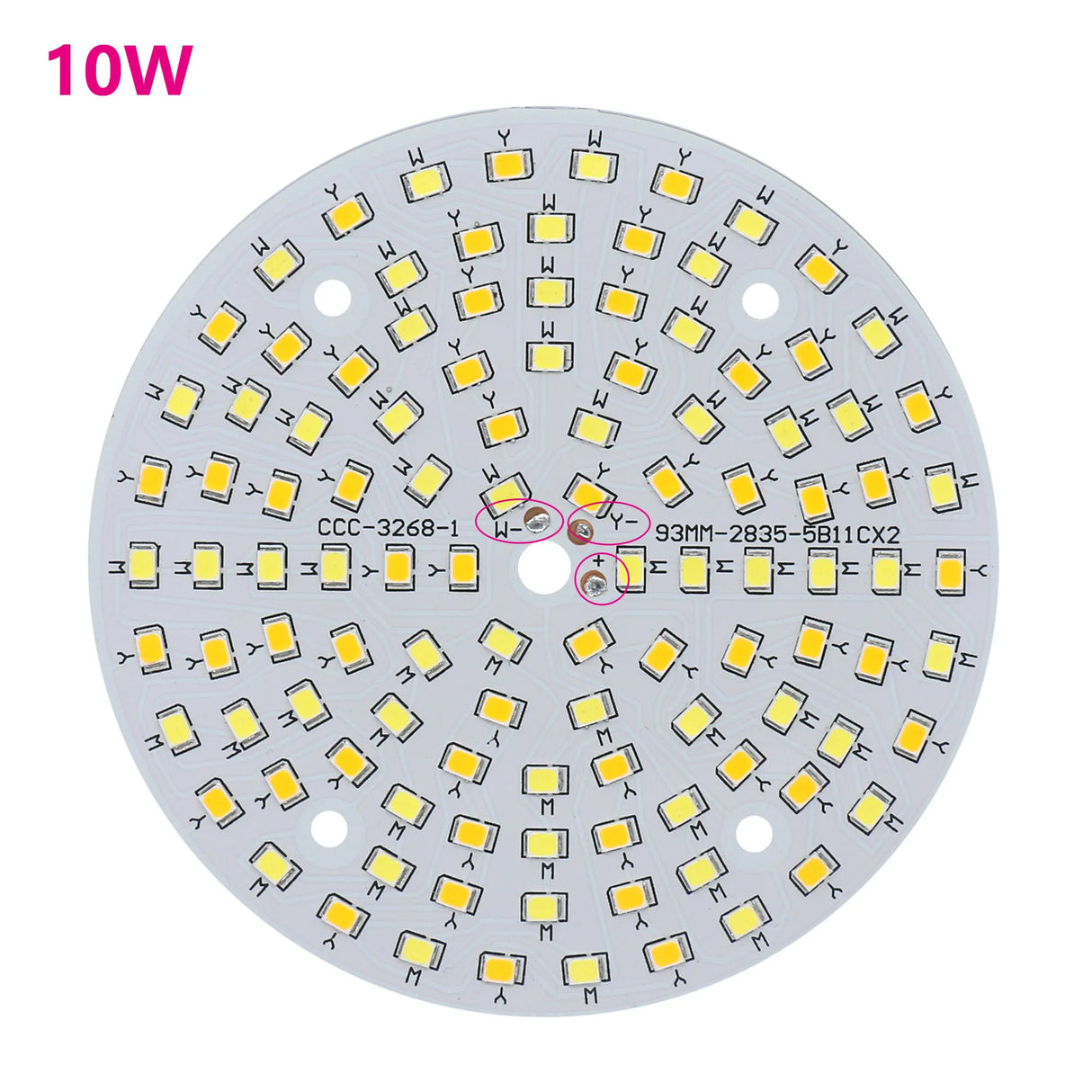

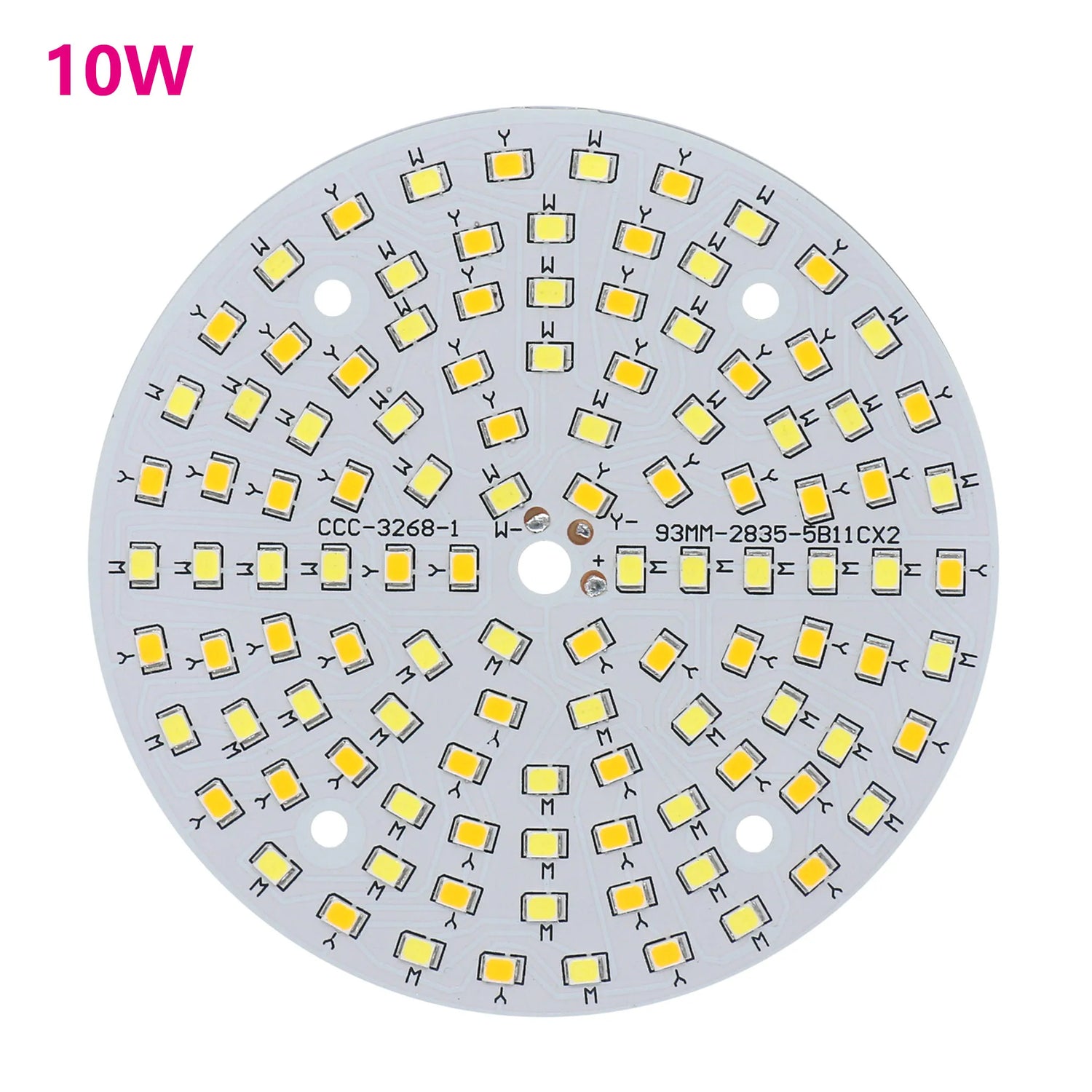

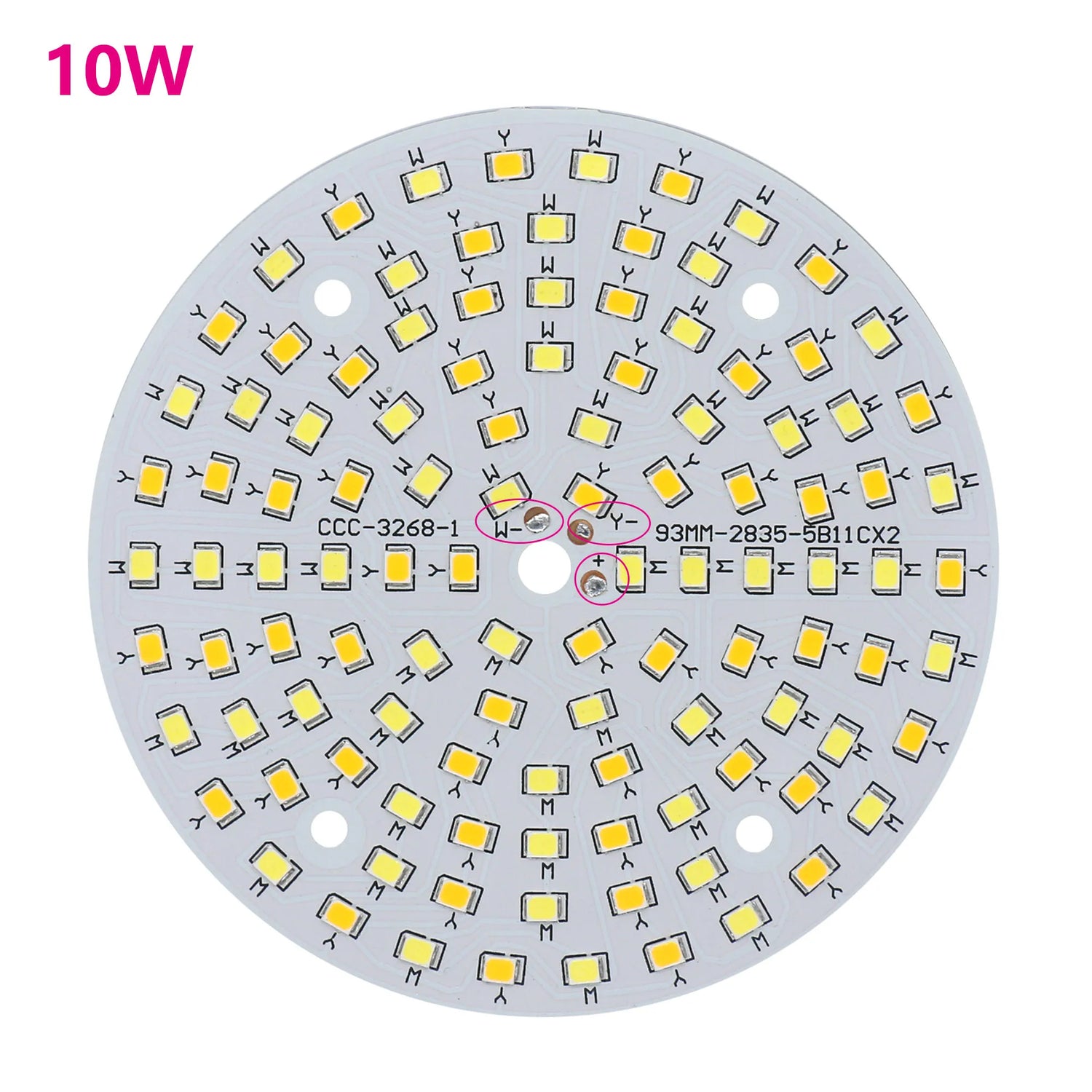

Two-color ：10W
Lamp bead model: SMD2835
Power: 10W White+10W Warm white
Voltage: DC30-32V
Current: 250mA±5%
Serial and parallel circuit: 11 series and 5 parallel
Size: diameter =93mm
Crystal size: 10*30mil
Number of crystals: 55pcs*2
Crystal name: Epistar chip
Lumens: 1000LM
Aluminum substrate thickness: 0.6mm (0.02in)
Thermal conductivity of aluminum substrate: 2.0W/(m·K)
Application place: Panel light

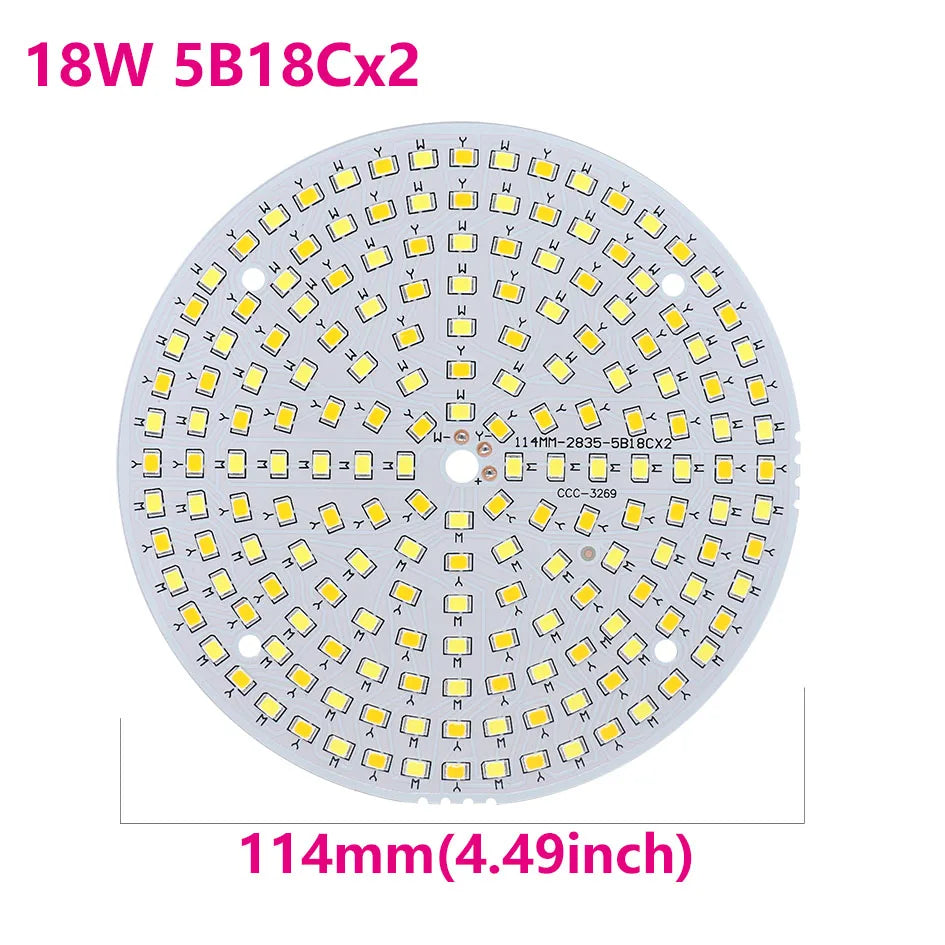

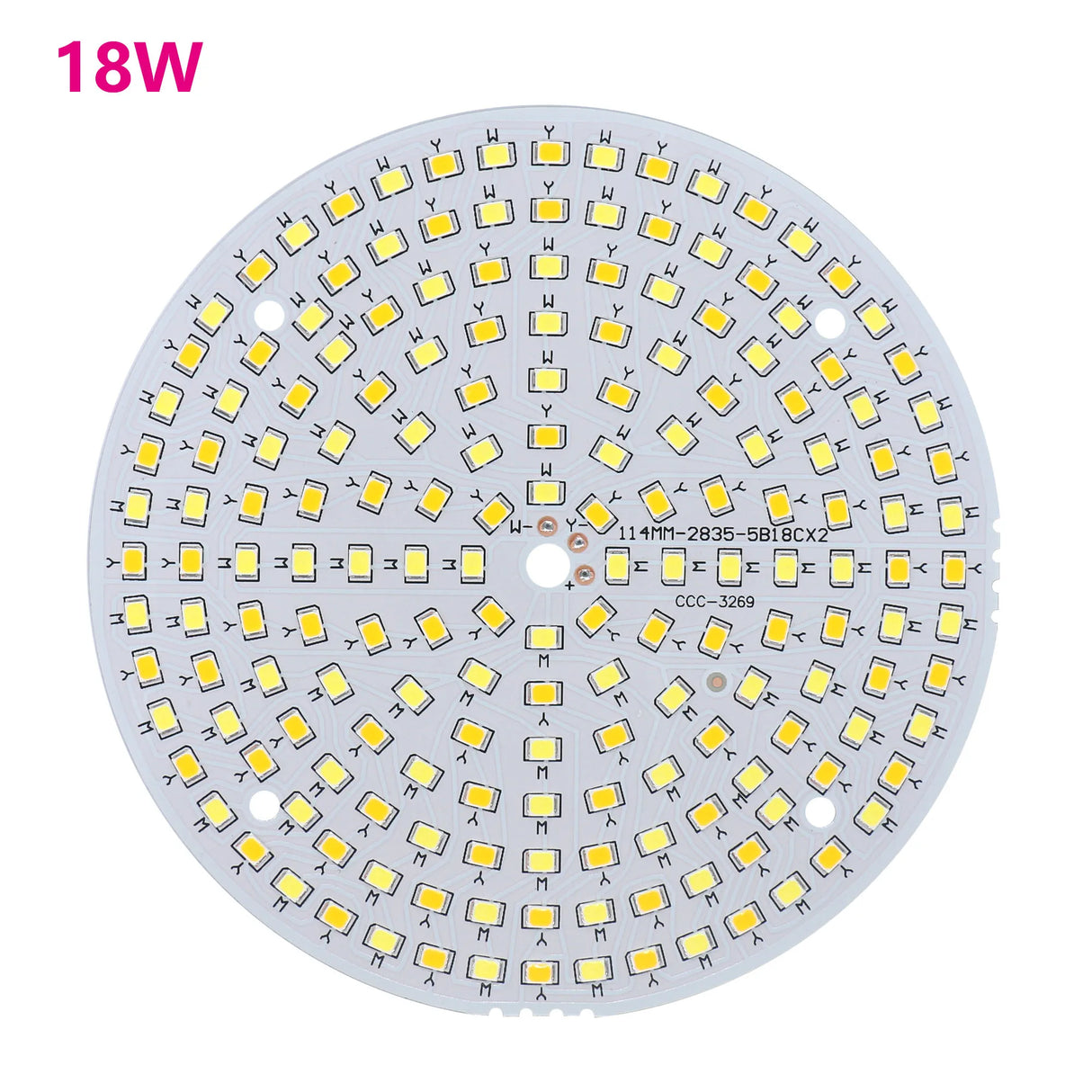

Two-color ：18W
Lamp bead model: SMD2835
Power: 18W white+18W Warm white
Voltage: DC54-56V
Current: 250mA±5%
Serial and parallel circuit: 18 series and 5 parallel
Size: diameter =114mm
Crystal size: 10*30mil
Number of crystals: 90pcs*2
Crystal name: Epistar chip
Lumens: 1800LM
Aluminum substrate thickness: 0.6mm (0.02in)
Thermal conductivity of aluminum substrate: 2.0W/(m·K)
Application place: Panel light

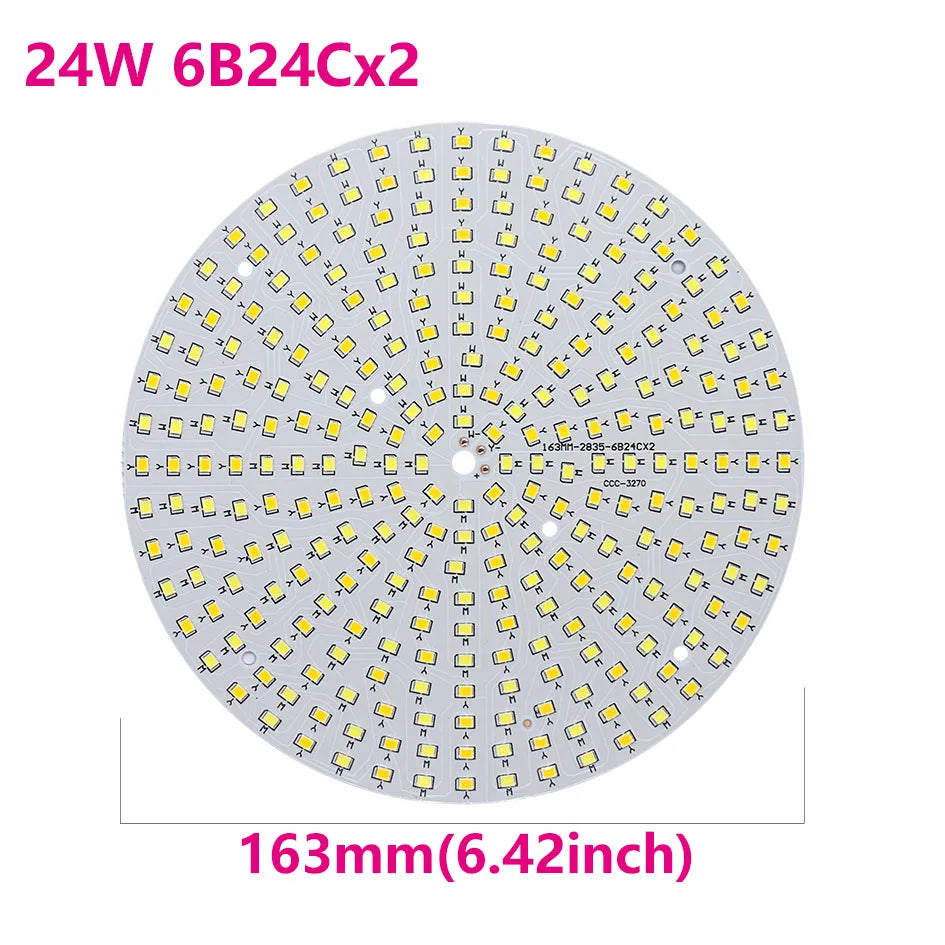

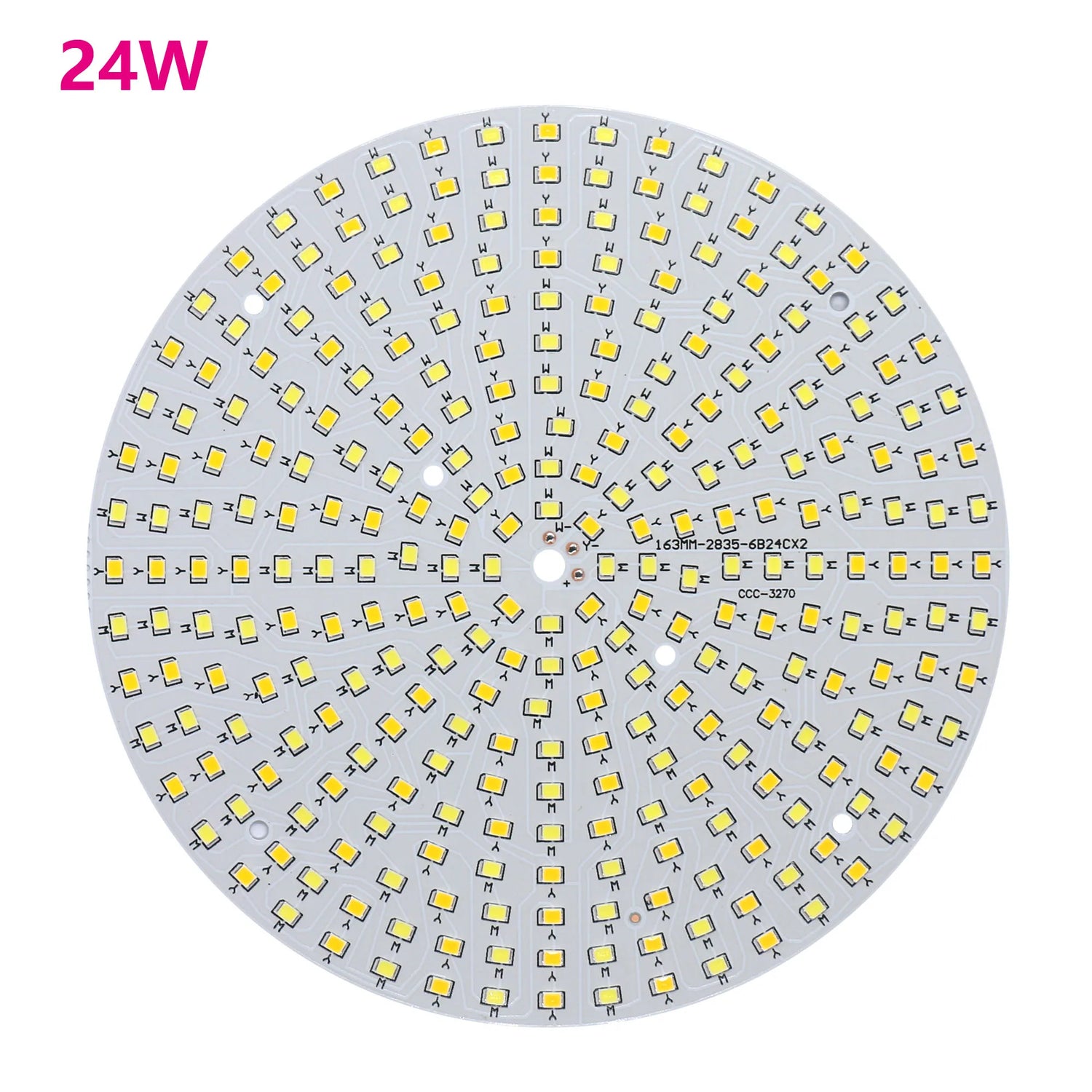

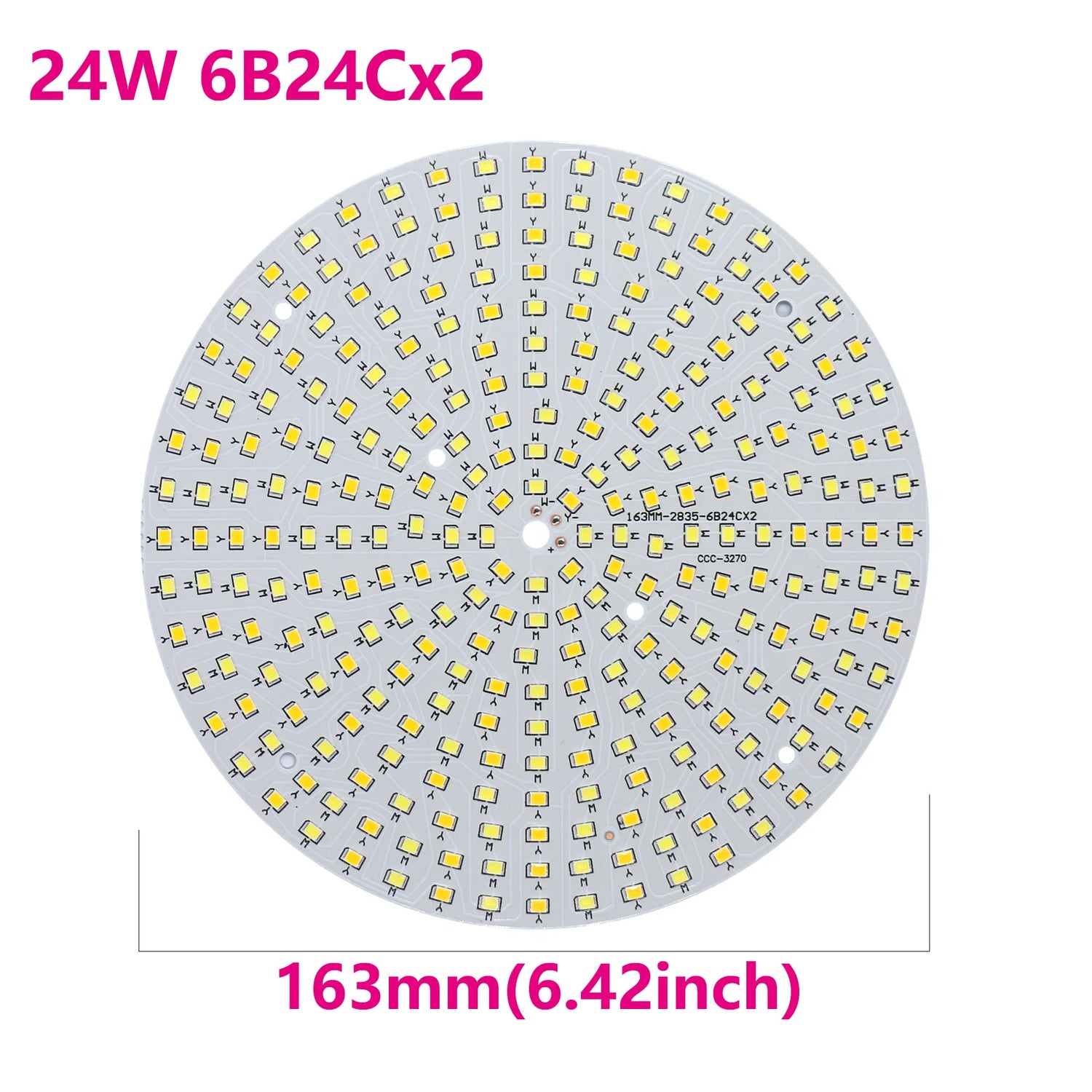

Two-color ：24W
Lamp bead model: SMD2835
Power: 24W white+24W Warm white
Voltage: DC72-76V
Current: 250mA±5%
Serial and parallel circuit: 24 series and 6 parallel
Size:diameter =163mm
Crystal size: 10*30mil
Number of crystals: 144pcs*2
Crystal name: Epistar chip
Lumens: 2400LM
Aluminum substrate thickness: 0.6mm (0.02in)
Thermal conductivity of aluminum substrate: 2.0W/(m·K)
Application place: Panel light

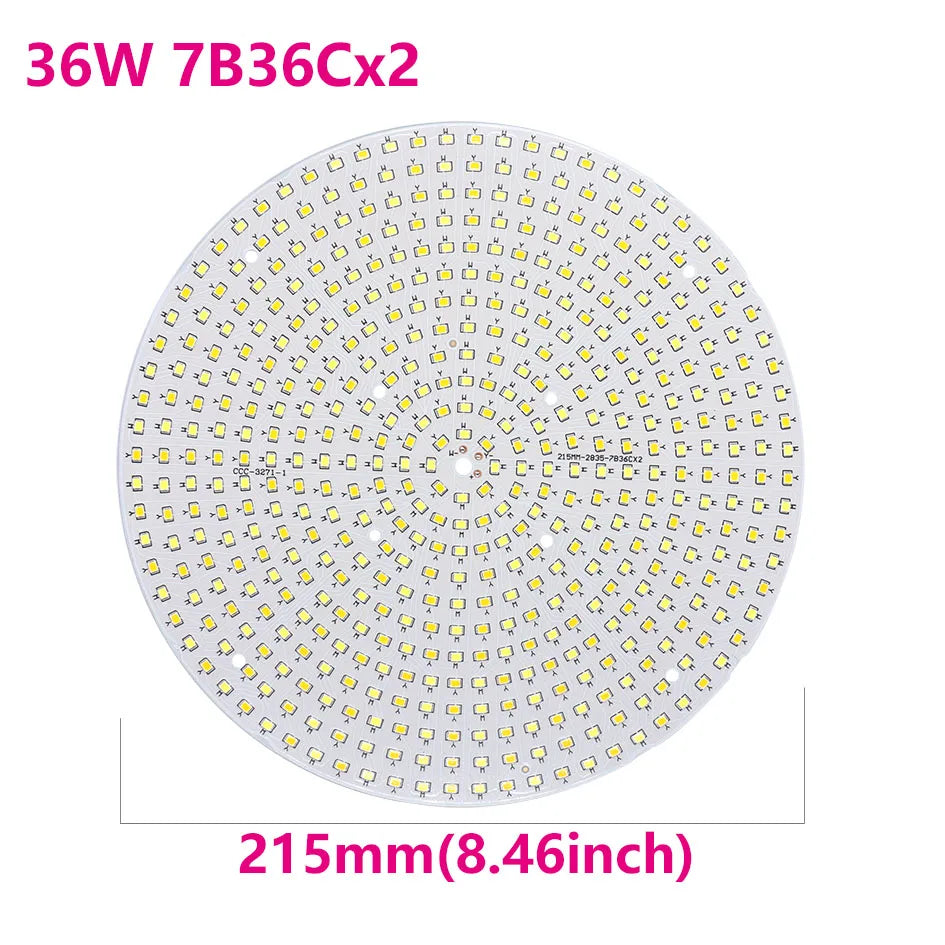

Two-color ：36W
Lamp bead model: SMD2835
Power: 36W white+36W Warm white
Voltage: DC108-115V
Current: 250mA±5%
Serial and parallel circuit: 36 series and 7 parallel
Size: diameter =215mm
Crystal size: 10*30mil
Number of crystals: 252pcs*2
Crystal name: Epistar chip
Lumens: 3600LM
Aluminum substrate thickness: 0.6mm (0.02in)
Thermal conductivity of aluminum substrate: 2.0W/(m·K)
Application place: Panel light
