SPECIFICATIONS

10W Lumens: 1000LM

10W Number of crystals: 55pcs*2

10W Serial and parallel circuit: 11 series and 5 parallel

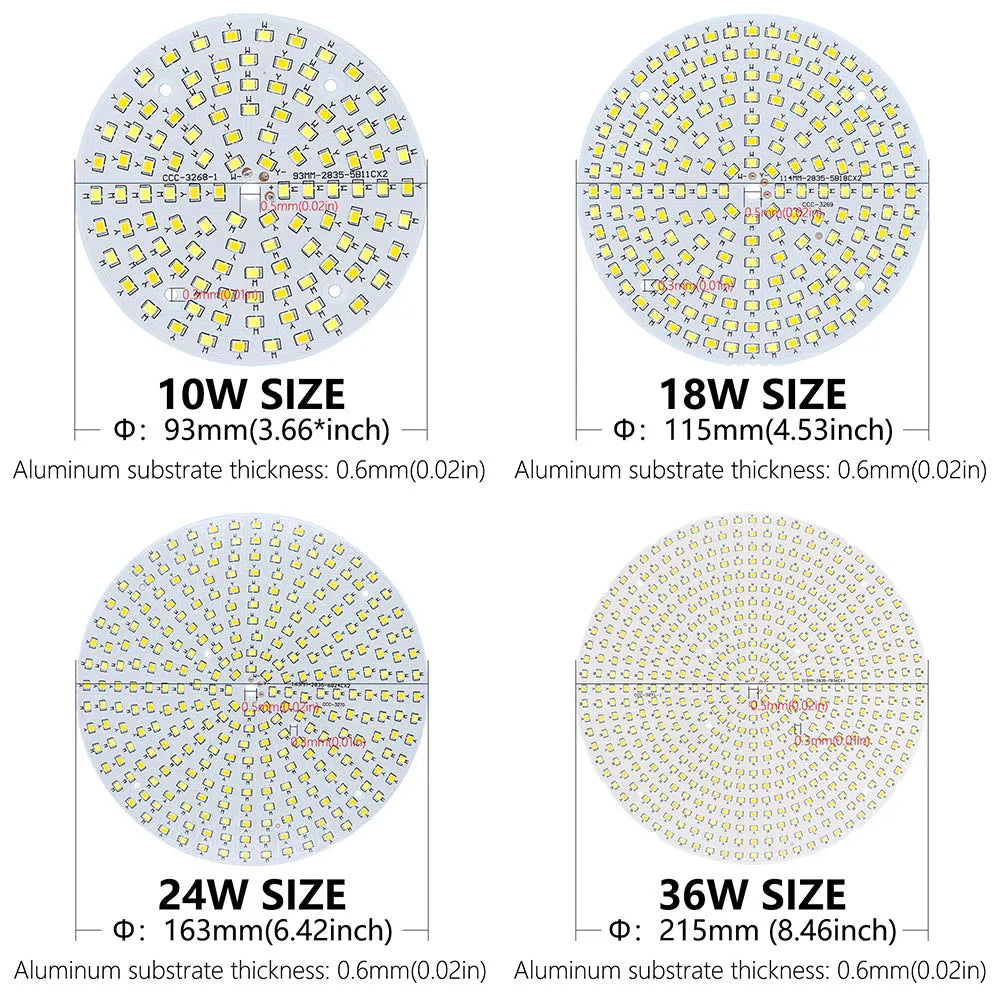

10W Size: 93mm(3.66*inch)

10W Voltage: DC30-32V

18W Lumens: 1800LM

18W Number of crystals: 90pcs*2

18W Serial and parallel circuit: 18 series and 5 parallel

18W Size: 115mm(4.53inch)

18W Voltage: DC54-56V

24W Lumens: 2400LM

24W Number of crystals: 144pcs*2

24W Serial and parallel circuit: 24 series and 6 parallel

24W Size: 163mm(6.42inch)

24W Voltage: DC72-76V

36W Lumens: 3600LM

36W Number of crystals: 252pcs*2

36W Serial and parallel circuit: 36 series and 7 parallel

36W Size: 215mm (8.46inch)

36W Voltage: DC108-115V

Aluminum substrate thickness: 0.6mm (0.02inch)

Application place: Panel light

Brand Name: DT&ZM

Certification: CCC

Crystal name: Epistar chip

Crystal size: 10*30mil

Current: 250mA±5%

Hign-concerned Chemical: None

Item Type: BALL

Power: 10W/18W/24W/36W

Thermal conductivity of aluminum substrate: 2.0W/(m.K)

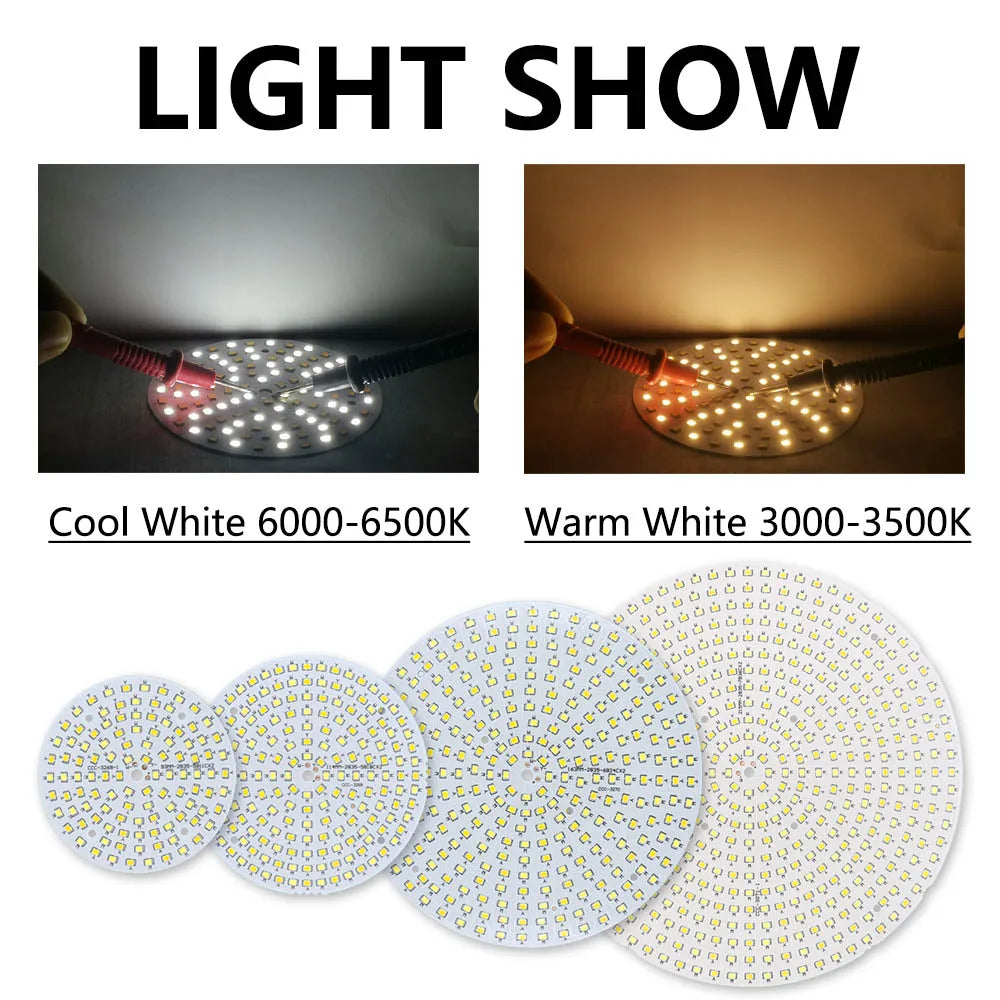

Dual color LED drive+dual color light panel

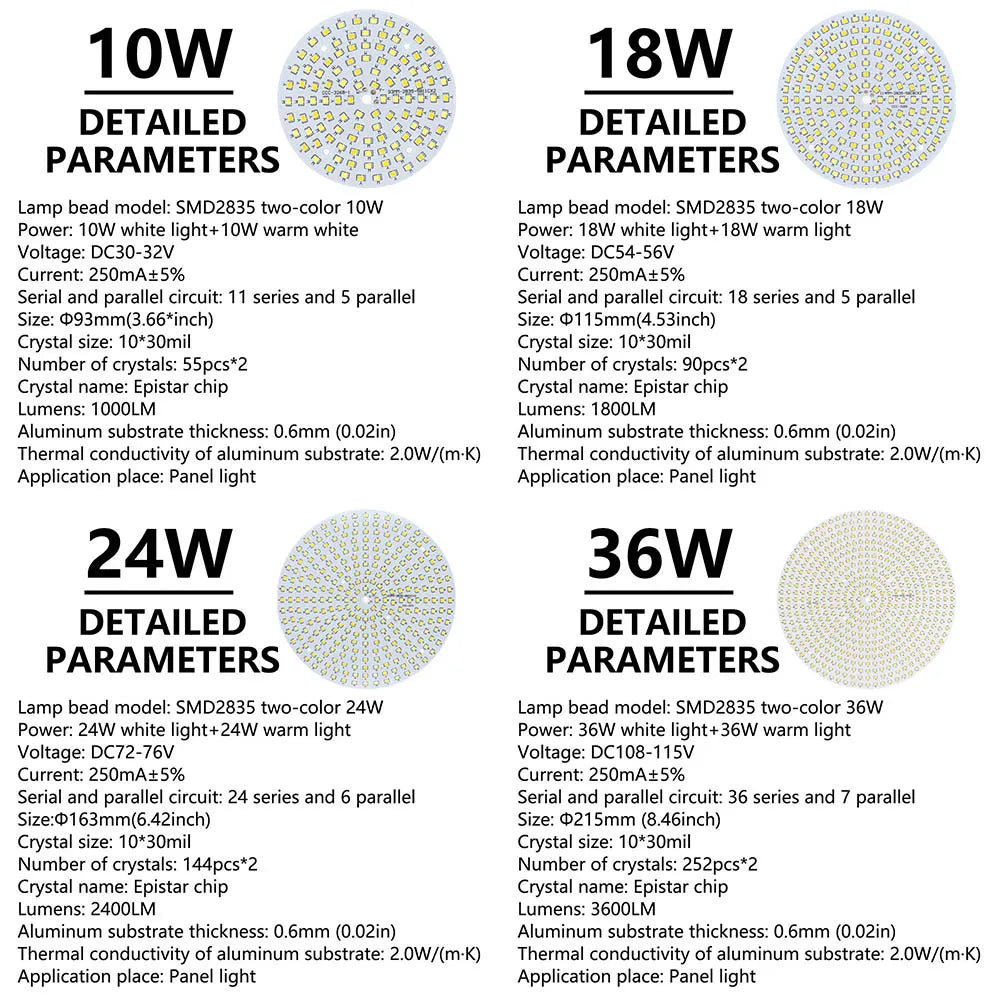

Product Details

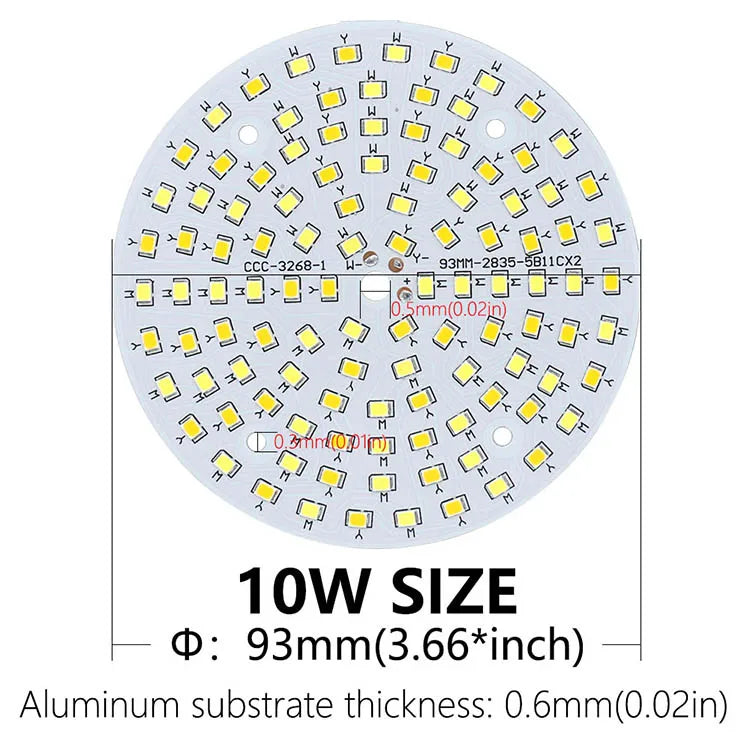

Lamp bead model: SMD2835 two-color 10W

Power: 10W white light+10W warm white

Voltage: DC30-32V

Current: 250mA±5%

Serial and parallel circuit: 11 series and 5 parallel

Size: Φ93mm(3.66*inch)

Crystal size: 10*30mil

Number of crystals: 55pcs*2

Crystal name: Epistar chip

Lumens: 1000LM

Aluminum substrate thickness: 0.6mm (0.02in)

Thermal conductivity of aluminum substrate: 2.0W/(m·K)

Application place: Panel light

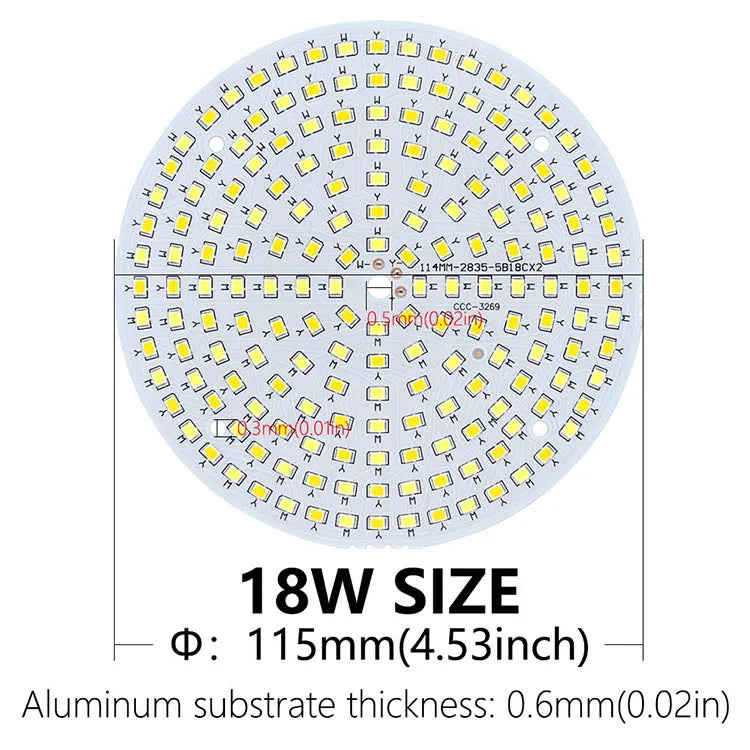

Lamp bead model: SMD2835 two-color 18W

Power: 18W white light+18W warm light

Voltage: DC54-56V

Current: 250mA±5%

Serial and parallel circuit: 18 series and 5 parallel

Size: Φ115mm(4.53inch)

Crystal size: 10*30mil

Number of crystals: 90pcs*2

Crystal name: Epistar chip

Lumens: 1800LM

Aluminum substrate thickness: 0.6mm (0.02in)

Thermal conductivity of aluminum substrate: 2.0W/(m·K)

Application place: Panel light

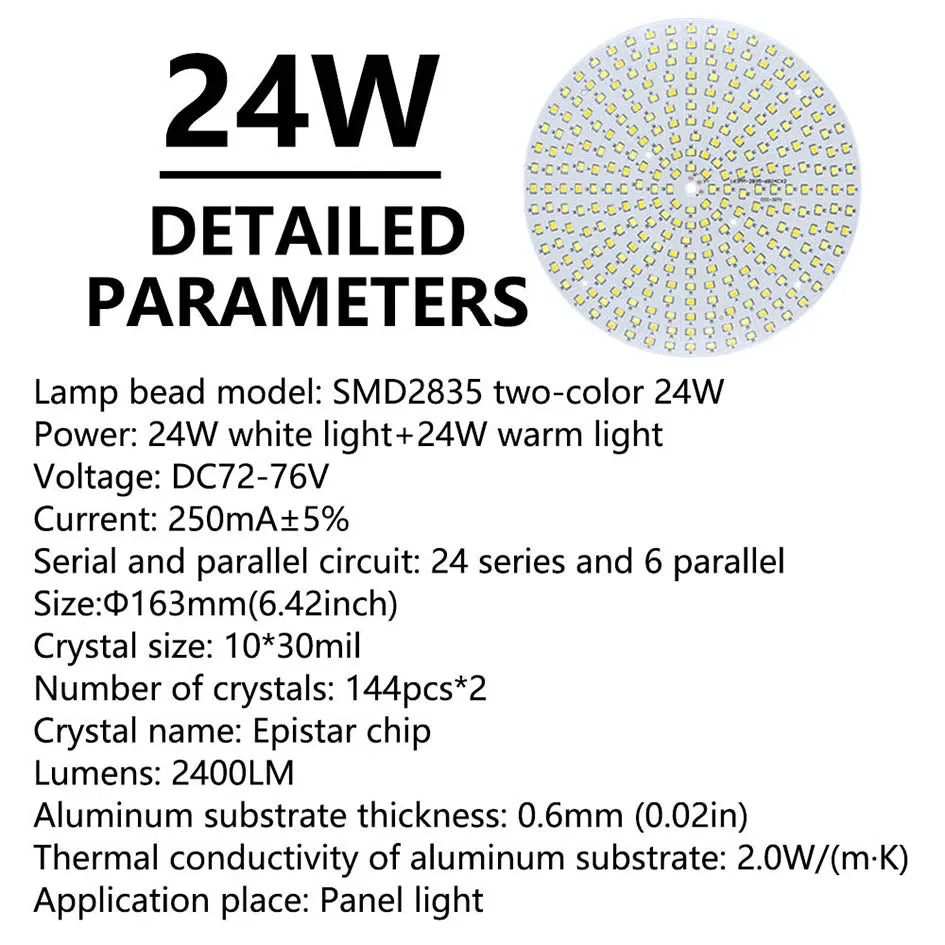

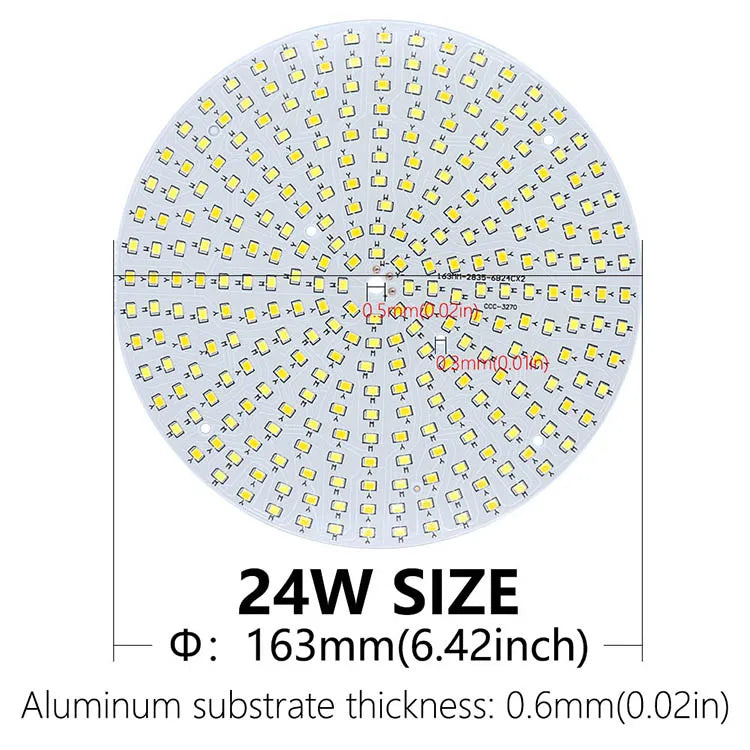

Lamp bead model: SMD2835 two-color 24W

Power: 24W white light+24W warm light

Voltage: DC72-76V

Current: 250mA±5%

Serial and parallel circuit: 24 series and 6 parallel

Size:Φ163mm(6.42inch)

Crystal size: 10*30mil

Number of crystals: 144pcs*2

Crystal name: Epistar chip

Lumens: 2400LM

Aluminum substrate thickness: 0.6mm (0.02in)

Thermal conductivity of aluminum substrate: 2.0W/(m·K)

Application place: Panel light

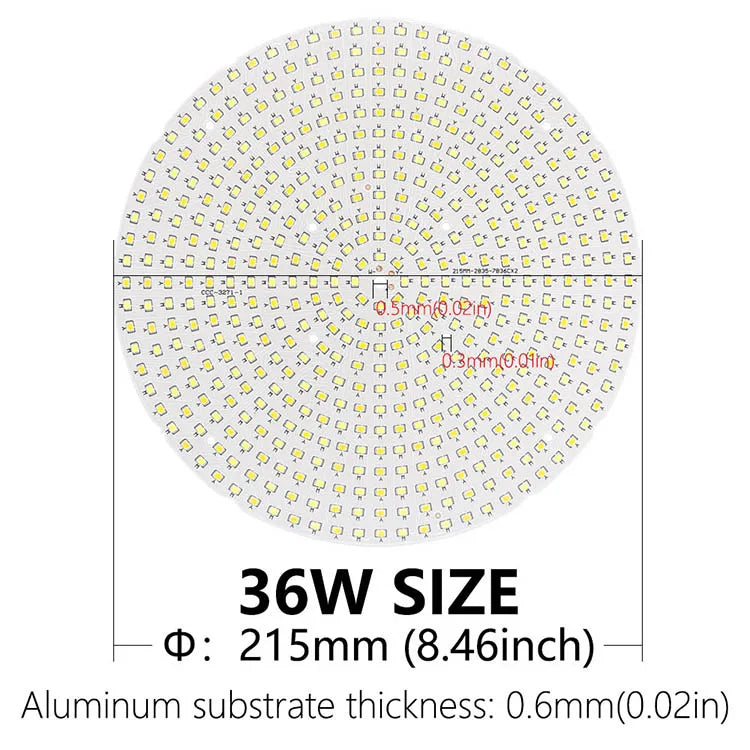

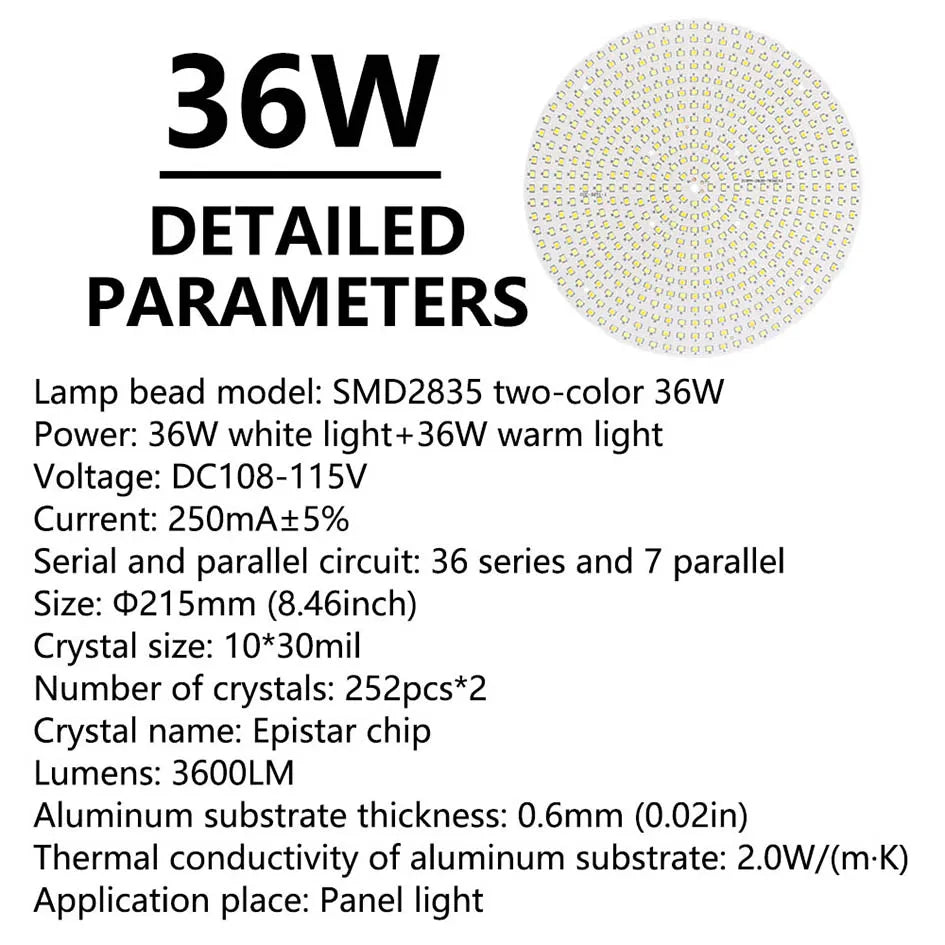

Lamp bead model: SMD2835 two-color 36W

Power: 36W white light+36W warm light

Voltage: DC108-115V

Current: 250mA±5%

Serial and parallel circuit: 36 series and 7 parallel

Size: Φ215mm (8.46inch)

Crystal size: 10*30mil

Number of crystals: 252pcs*2

Crystal name: Epistar chip

Lumens: 3600LM

Aluminum substrate thickness: 0.6mm (0.02in)

Thermal conductivity of aluminum substrate: 2.0W/(m·K)

Application place: Panel light
